Digital Load Simulator Model EL41


25lb Load Cell Kit


25lb Load Cell Kit View 25lb Load Cell Kit Details

Download Datasheet

Buy 25lb Load Cell Kit NOW

Buy 25lb Load Cell Kit Optional Datalogger PC Software NOW




25lb Load Cell Details:

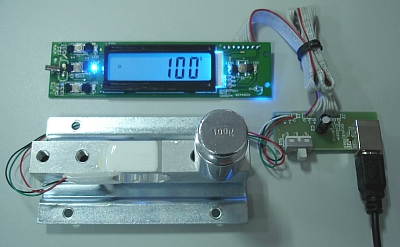

The whole kit includes 12kg / 25lbLoad Cell with bracket, USB scale PCB module with USB cable, LCD display module, and weight display PC software. Resolution is 0.1oz or 3gram.

USB PC Program:

The USB PC Program displays the weight reading from the Load Cell. Has buttons for Tare, Switch Weight display to grams, Switch Weight Display to kg, Switch Display to lb/oz, Copy Weight to clipboard, and Calibration. The weight reading in the PC Program also updates automatically when switching weight display to grams, kg, or lb/oz via the LCD module. Calibration Point is 1, 2, 3, or 4 with calibration offset (grams) of 100, 500, 1000, 2000, 3000, 4000, 5000, or 10000. After successful payment, the USB PC Program will be sent via email during China business hours. On the USB PC Program's first run it will show the software's serial number. Kindly email us back the serial number so that we can send you the registration code to continue using the software.

25lb Load Cell Kit PC Program Tare display  25kit Load Cell Kit PC Program AD Count display  25lb Load Cell Kit PC Program Gram display  15kg Load Cell Kit PC Program LB-OZ display

Optional data logger software is also available. Logging interval is between 1 to 3600 seconds and logging duration is between 1 to 86400 seconds. Output file is CSV or Text file.


25lb Load Cell Kit PC Program Data Logging Display  25lb Load Cell Kit PC Program Data Logging Display   25lb Load Cell Kit PC Program Data Logging Display  25lb Load Cell Kit PC Program Data Logging Display

USB PC Program Download Link

http://www.elane.net/USBscales/25LB_LCKit_PCProgram.zip
After download, unzip then install. On the PC Program's first run it will show the software's serial number. Kindly email us back the serial number so that we can send you the registration code to continue using the software.
