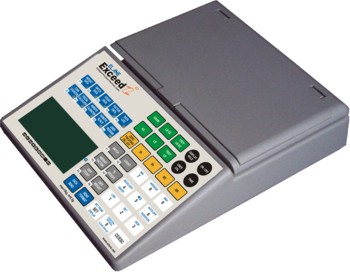

Exceed i 5kg
FUNCTIONS and FEATURES
STATE-OF-THE-ART digital weighing and
multi-purpose scale from Elane
Offers a wide range of important functions
and customized features which cannot be found in other weighing
Power packed with new and exciting features
which are all fully customizable - it can function as a weight
converter, as a batch weighing scale, as a counting scale, as a
postal scale, as a coin counter scale, as a weight recording
scale, and other functions that it is capable of
Despite its multi-functionality, ease of use
and interaction with the scale is maintained
with an application program, the Exceed
PC Program, that can be used to further
interact with your scale via computer
Intelligent precision digital weighing scale
in the world especially made and developed by Elane for all
users who are looking for new innovation, vitality, flexibility,
multi-functionality, and interactivity in weighing scales
Read Liquid Crystal Display - Exceed
Scale displays are very clear and readable. You may
also opt to turn on or off the backlight for your
RS232 Compatible Interface Cable - This interface
cable can be used to connect your scale to your computer
and other serial devices. This is also used to interact
PC Program and use customized features of the scale.
This is supplied with the scale.
External Memory Cartridge - 128 KB of external
memory cartridge that can be used in data logging
feature. This cartridge is optional and is sold
SEPARATELY from the scale.
Logical Output Cable for Batch Weighing Feature -
Includes Batch Data Control Output Cable that can be
used to determine outputs during batch weighing
Models Come in Different Weighing Capacity and
Resolution - choose the model that will fit your
weighing needs. Exceed
Scale is available in 500gram/0.05gram, 5kg/0.5gram,
10kg/1gram scale models (capacity/resolution).
Weights in 6 Standard Units
- scale can display weights in gram, kilogram, pounds,
pounds/ounces, troy pounds, troy pounds/ounces. It is
like having an instant weight conversion calculator.
Batch Weighing Function - lets you program a
weight value and use this as a reference to weigh items
accurately. This is useful when packing products or
items that should meet a standard weight specification.
– counts number of objects on the scale according to a
Weight Factor Function
– allows multiplication of the current weight reading by
a certain factor (this can increase or decrease scale
- calculates percentage of the current weight on the
platform with regards to a target weight.
counts the number of items that are being removed from
or being added to the scale (shows the change in count
of the items on the platform).
calculates and shows the weight that is being removed
from or being added to the scale (shows the change in
weight of the items on the platform.
Memory Store Function
– stores values that can be used for later reference.
Memory Recall Function
– recalls previous stored values that can be used in the
– freezes the current display on the LCD and this is
helpful when weighing items that are considerably large
and tend to block the display on the LCD.
– sets weight back to 0
and this is helpful when weighing items with containers
(subtracts the weight of the container from the overall
weight to get the actual weight of the item).
Auto Calibrate Function
– allows scale calibration using a specific weight (in
case the scale loses accuracy).
Data Send Function
– allows sending of weight data to a computer program
and this can be done manually or within time intervals.
Zero Tracking and No Zero Tracking Software - You
can choose what type of software to program to your
Scale. The Zero Tracking software is the regular and
default software that is programmed into Exceed
scales. The No Zero Tracking software is optional during
scale software update. For more information about these
types of software, visit
i Scale FAQ page.
Online Software Update
– in cases where there are software enhancements for the
scale, it can be updated using only an application
software updates can be done online and only within a
few minutes using Exceed
PC Program which can be downloaded. Use the RS232
Interface Cable to connect your scale to your computer
and perform software update. In case of software
changes, there is no need for replacement chips to be
shipped from the factory. The online software update is
FREE OF CHARGE!
– sends and displays current weight on the Exceed
2. Batch Data – sends and displays results of
batch weighing on the Exceed
PC Program. This is helpful
when you need to capture the results of batch weighing
and use it to process further actions.
3. Count Data – sends and displays the number of
items counted in Count function.
4. Factor Data – sends and displays results of
weight adjustments using a factor.
5. Data Log - allows reading of logged data from
the external memory cartridge of the Exceed
Scale. The external memory
cartridge of the scale is an optional component and this
can be used to store or save weight values during data
6. Coin Counter - allows the scale to be
connected to a coin counter application program which is
a part of the Exceed
7. Postal Calculator - allows the scale to be
connected to a postal calculator program which is a part
of the Exceed
8. Remote Calibration – allows user to perform
remote scale calibration of his Exceed
scale. In cases where there
is need to adjust scale’s calibration due to change in
demographic location or abnormalities of the
surroundings, use this to adjust calibration settings of
9. Remote Scale – allows the scale to be
connected to an external weighing platform. Exceed
scale can have an external
weighing platform with separate load cell and it usually
can accommodate heavier weights (up to 30 kg).
10. User Program – this is intended for a
customized application program that users may want for
these functions are fully customizable. Each feature can
be selected and activated on the scale using an unlock
code. This unlock code can be purchased online. Use this
in the Exceed
PC Program to unlock and
use the function. To purchase an unlock code for a
certain feature of the Exceed
Intelligent Precision Electronic Scale, click
