Bar Inventory Manager Wireless Scanner

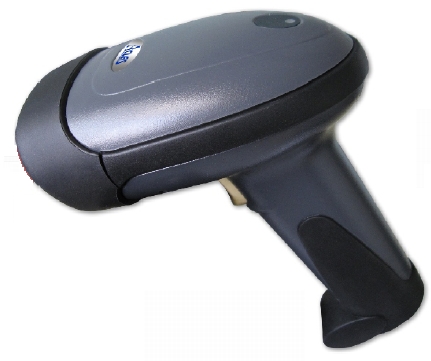

Elane Bar Inventory Manager Wireless Scanner Picture
Elane Bar Inventory Manager Wireless Scanner Dongle Picture
 Unique Functions
- 2.4 Ghz frequency guarantees several scanners working closely without interfering each other.
- Power saving.
- Thin wire diameter design. Durable, flexible and has high tensile strength, better than ordinary products.

Advance functions and Features
- Latest power saving scanner, 650nm high speed laser scanning makes it capable of reading various kinds of barcode accurately and fast. A scan rate of up to 44/sec, and an error rate less than one in a million.
- Dustproof and waterproof design reaches to IP65.
- High capacity 600mAh built-in Li-polymer battery guarantees at least 10 hours continuous usage and 500 hours idle time (standby currency is less than 50u A).
- Ergonomic design makes the operation very comfortable.
- Could endure impact from 1.5M height to cement ground.

SPECIFICATIONS:
Light source types 650mm laser
Usage method Portable or installed in cradle
Error Rate 1/1000k times
Safety Standard CDRH CLASS II, IEC CLASS II
Readable Barcode Type UPC-A, UPC-E, Industrial 2of 5, EAN8, EAN13, Code128, EAN128, Code39, Code93, Codabar125, etc
Supported Interface USB
Scanning trigger mode Manual or Automatic
Transmission rate RS232 baud rate: 2400~38300
Min detection 0.10mm (4mil)
Readable width 60mm at 30mm (from the target), 98mm at 100mm (from the target)
Depth of field 10-420 (pcs0.9, density 0.25)
Reading speed 45 times/second
Reading precision 0.10~0.825mm
Reading distance 10~520mm
Induction distance 23cm (250cm2) 19.5cm (125cm2) 8cm (small area)
Readable elevation 60 degree
Readable declination 45 degree
Operating Temperature 0C ~40C
Storage Temperature 0C ~40C
Operating humidity 5%~93%
Storage humidity 5%~93%
Power supply 5V
Battery capacity 600mAh
Operation current 120mA
Static Current 30mA
Drop test 100times from 1.5m
Light Intensity Sunlight 3.000LUX max
EMI In accordance with the EN50081.par1
EMS In accordance with the EN50081.par1
Dustproof and waterproof In accordance with IEC529, IP65
Dimensions 112mm (length)*75mm (width)*200mm (height)
Materials ABS+PC
Weight 224 grams
