-L3V load cells are available in the capacities 200Kg and 500kg .
-Aluminum material,sealed with silicon adhesive,anodized surface with good resistance against corrosion.
-Integral structure,easy installation.
-They are suitable for electron measuring system.
-Capacities:200kg and 500㎏.
-High accuracy.
- Aluminum parallel beam construction
-Integral installation
SPECIFICATIONS:
Capacity |
kg |
200、500 |
|
Output sensitivity |
mv/v |
2.3±0.04 |
|
Accuracy class |
C2 |
||
| Temperature effect on zero | %FS/10℃ |
0.03 |
|
Temperature effect on sensitivity |
+20℃~+40℃ |
%FS/10℃ |
0.03 |
-10℃~+20℃ |
0.03 |
||
Combined error |
%FS |
0.0300 |
|
Creep |
%FS |
0.0200 |
|
Input resistance |
Ω |
410±30 |
|
Output resistance |
Ω |
350±3 |
|
Insulation resistance |
MΩ |
≥ 5000 |
|
Zero balance |
%FS |
2 |
|
Temperature,compensated |
℃ |
-10～+40 |
|
Temperature,allowed |
℃ |
-20～+50 |
|
Excitation,Recommended |
V |
5-15 |
|
Safe overload |
%FS |
150 |
|
Ultimate overload |
%FS |
300 |
|

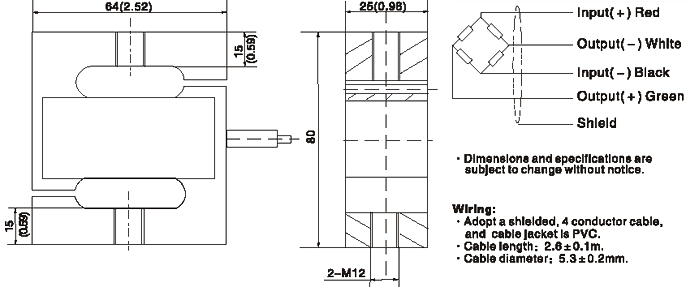

Outline Dimension mm(inch)
