ELC-L106
SPECIFICATIONS:
| Capacity | t | 0.5,1,1.5,2,2.5,3,5 | |||
| Combined Error | OIML R60 C3 | Temperature effect on span | %FS/10℃ | 0.02 | |
| Rated Output | mV/V | 3.0±0.004 | Temperature effect on zero | %FS/10℃ | 0.02 |
| Non-linearity | %FS | 0.02 | Temperature,compensated | ℃ | -10--+40 |
| Hysteresis | %FS | 0.02 | Temperature,operating | ℃ | -35--+65 |
| Non-repeatability | %FS | 0.01 | Excitation,recommended | V | 9-12(DC) |
| Creep(%FS/30min) | 0.02 | Excitation,permition | V | 6-18(DC) | |
| Input Resistance | Ω | 350±3.5 | Safe Overload | %FS | 120 |
| Output Resistance | Ω | 350±3.5 | Ultimate Overload | %FS | 150 |
| Insulation Resistance | MΩ | >5000(50VDC) | Protection Class | IP66 | |
| Zero Balance | %FS | 1.0 | Cable Length | m | 4,6 |
 |
Single shear beam, alloy steel, nickel-plated, adhesive-sealed, suitable for platform scales, hopper scales and other weighing devices.

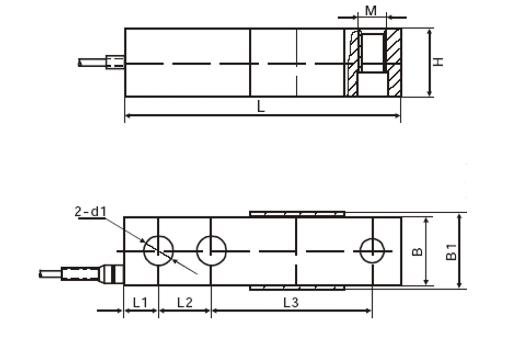

OUTLINE SIZE:
| Capacity(t) | L | L1 | L2 | L3 | H | B | B1 | d1 | M |
| 0.5-2 | 130 | 15.8 | 25.4 | 76.2 | 31.8 | 31.8 | 34 | ￠13.5 | M12X1.75 |
| 2.5-5 | 171.5 | 19.1 | 38.1 | 95.3 | 38.1 | 38.1 | 40 | ￠19.8 | M18X1.5 |
