ELC-L104  Load cell


SPECIFICATIONS:

Capacity t 0.25,0.5,1,2,5
Combined Error %FS 0.02  0.03 Temperature effect on span %FS/10℃ 0.02
Rated Output mV/V 2.0±0.004 Temperature effect on zero %FS/10℃ 0.02
Non-linearity %FS 0.02  0.03 Temperature,compensated ℃ -10--+40
Hysteresis %FS 0.02  0.03 Temperature,operating ℃ -35--+65
Non-repeatability %FS 0.01 Excitation,recommended V 9-12(DC)
Creep(%FS/30min) 0.02 Excitation,permition V 6-18(DC)
Input Resistance Ω 1000+_10 Ohm Safe Overload %FS 120
Output Resistance Ω 1004+_5 Ohm Ultimate Overload %FS 150
Insulation Resistance MΩ >5000(50VDC) Protection Class   IP66
Zero Balance %FS 1.5 Cable Length m 3,6


Single shear beam, alloy steel, nickel-plated, adhesive sealed, suitable for vehicle scales, truck scales, hopper scales and other weighing devices.

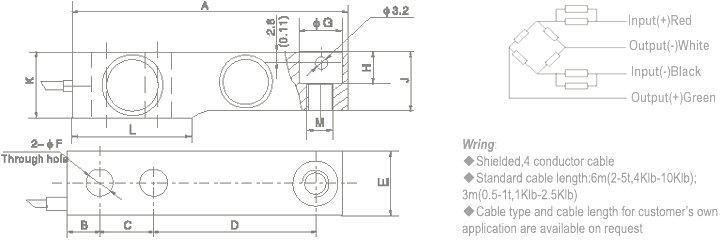

OUTLINE SIZE:



Capacity
kg
lb

A
mm
(inch)

B
mm
(inch)

C
mm
(inch)

D
mm
(inch)

E
mm
(inch)
F
mm
(inch)
G
mm
(inch)
H
mm
(inch)
J
mm
(inch)
K
mm
(inch)
L
mm
(inch)
M

50㎏
500lb

130.0
(5.12)

15.7
(0.62)

25.4
(1.0)

76.2
(3.0)

31.3
(1.23)

13
(0.51)

20.5
(0.81)

14
(0.55)

25.3
(0.99)

31.6
(1.24)

57
(2.24)

M12
1/2-20UNF

500㎏
1Klb

130.0
(5.12)

15.7
(0.62)

25.4
(1.0)

76.2
(3.0)

31.3
(1.23)

13
(0.51)

20.5
(0.81)

14
(0.55)

26
(1.02)

31.6
(1.24)

57.1
(2.25)

M12
1/2-20UNF

1.0t
2Klb,2.5K

130.0
(5.12)

15.7
(0.62)

25.4
(1.0)

76.2
(3.0)

31.3
(1.23)

13
(0.51)

20.5
(0.81)

14
(0.55)

27.95
(1.1)

31.6
(1.24)

57.1
(2.25)

M12
1/2-20UNF

1.5t,2.0t
4Klb,5Klb

130.0
(5.12)

15.7
(0.62)

25.4
(1.0)

76.2
(3.0)

31.3
(1.23)

13
(0.51)

20.5
(0.81)

14
(0.55)

31.95
(1.26)

35.7
(1.41)

57.1
(2.25)

M12
1/2-20UNF

5.0t
10Klb

172
(6.71)

19.1
(0.75)

38.1
(1.5)

95.3
(3.75)

37.5
(1.48)

20.4
(0.8)

30.2
(1.19)

19.8
(0.78)

40
(1.57)

43.8
(1.72)

76.2
(3.0)

M20
3/4-20UNF
