Capacity

t

0. 5/1/1.5/2/2.5/3/5/10

Klb

1/1.5/2/2.5/3/4/5/7.5/10/15/20

Accuracy class

C2

C3

C4

A5M

B10M

Approval

OIML R60 C3

III 5000
multiford

III L 10000
multiford

Maximum number of
verification intervals

n max

2000

3000

4000

5000

10000

Minimum load cell
verification interval

v min

Emax/5000

Emax/10000

Emax/14000

Emax/15000

Emax/10000

Combined error

(%FS)

≤±0.030

≤±0.020

≤±0.018

≤±0.026

≤±0.050

Creep

(%FS/30min)

≤±0.024

≤±0.016

≤±0.012

≤±0.017

≤±0.040

Temperature effect
on sensitivity

(%FS/10℃)

≤±0.017

≤±0.011

≤±0.009

≤±0.013

≤±0.040

Temperature effect
on zero

(%FS/10℃)

≤±0.023

≤±0.015

≤±0.010

≤±0.014

≤±0.020

Output sensitivity

(mv/v)

2.0 ±0.002

3.0±0.003

Input resistance

(Ω)

350±3.5

Output resistance

(Ω)

351±2

Insulation resistance

(MΩ)

≥ 5000(100VDC)

Zero balance

(%FS)

1.0

Temperature,
compensated

(℃)

-10～+40

Temperature,allowed

(℃)

-35～+65

Excitation,
Recommended

(V)

5～12(DC)

Excitation,Max

(V)

18(DC)

Safe overload

(%FS)

120

Ultimate overload

(%FS)

150

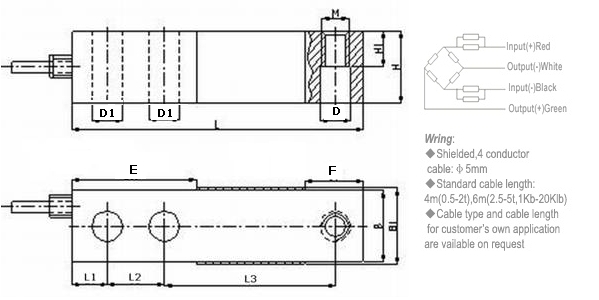

Dimension

L

L1

L2

L3

H

H1

B

B1

D

M

0.5t～2t
1～4K,5KSE

130
(5.12)

15.8
(0.62)

25.4
(1.0)

76.2
(3.0)

31.8
(1.25)

15.8
(0.62)

31.8
(1.25)

34
(1.34)

13.5
(0.53)

M12×1.75
1/2－20UNF

2.5～5t
5～10K

171.5
(6.75)

19.1
(0.75)

38.1
(1.5)

95.3
(3.75)

38.1
(1.5)

18.8
(0.74)

38.1
(1.5)

40
(1.57)

19.8
(0.78)

M18×1.5
3/4－16UNF

10t,20K

222.3
(8.75)

25.4
(1.0)

50.8
(2.0)

120.7
(4.75)

50.8
(2.0)

25.4
(1.0)

50.8
(2.0)

52.4
(2.06)

M24×2
1－12UNF

Alloy steel assembled with ELC-L101;ELC-L104;ELC-L105; ELC-L106

SIZE mm(inch)

CAPACITY(t)(lb)

ØD

H

H1

M

0.5T-2T

60(2.36)

90(3.54)

50(1.97)

M12x1.75

2.5T-5T

80(3.15)

105(4.13)

50(1.97)

M18x1.5

5-10Klb

80(3.15)

105(4.13)

50(1.97)

(3/4-16UNF)

1-4Klb

60(2.36)

90(3.54)

50(1.97)

(1/2-20UNF)
