ELC-HM8c



-HM8C load cells are available for manifold accurate measurement in the capacities 0.5t to 5t.
-Alloy steel,hermetically sealed,oil-proof,waterproof and anti-corrosion, suitable for multiform environment.
-Single shear beam and easy for installation,it is suitable for electronic platform scales,hopper scales
and other electronic weighing devices.
-It is safety and anti-explosion product that can be used in atrocious weather and hazardous areas.

Important Features
-Capacities:0.5t to 5t.
-High accuracy.
-Alloy steel construction.
-Low profile and nice exterior.


SPECIFICATIONS:

Capacity

t

0. 5/1/1.5/2/3/5/10

Accuracy class

C1

C2

C3

A5M

B10M

Maximum number of
verification intervals

n max

1000

2000

3000

5000

10000

Minimum load cell
verification interval

v min

Emax/3000

Emax/5000

E max/7500

Emax/15000

Emax/10000

Combined error

(%FS)

≤±0.050

≤± 0.030

≤±0.020

≤±0.026

≤±0.050

Creep

(%FS/30min)

≤±0.038

≤± 0.023

≤±0.016

≤±0.017

≤±0.040

Temperature effect
on sensitivity

(%FS/10℃)

≤±0.028

≤± 0.017

≤±0.011

≤±0.013

≤±0.040

Temperature effect
on zero

(%FS/10℃)

≤±0.047

≤± 0.029

≤±0.019

≤±0.014

≤±0.020

Output sensitivity

(mv/v)

2.0±0.004

Input resistance

(Ω)

350±3.5

Output resistance

(Ω)

351±2

Insulation resistance

(MΩ)

≥ 5000(50VDC)

Zero balance

(%FS)

1.0

Temperature,
compensated

(℃)

-10～+40

Temperature,allowed

(℃)

-35～+65

Excitation,
Recommended

(V)

5～12(DC)

Excitation,Max

(V)

18(DC)

Safe overload

(%FS)

120

Ultimate overload

(%FS)

150

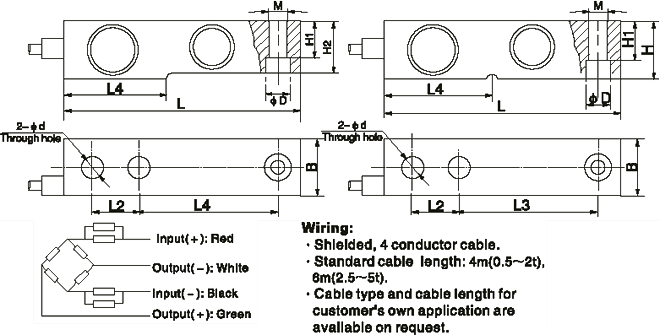

 Outline Dimension mm(inch)



(t)

L

L1

L2

L3

H

B

D

d

M

L4

H1

H2

0.5

130
(5.12)

15.8
(0.62)

25.4
(1.0)

76.2
(3.0)

31.8
(1.25)

31.8
(1.25)

13.5
(0.53)

13.5
(0.53)

M12

53.7
(2.11)

15.8
(0.62)

26
(1.02)

1.0

130
(5.12)

15.8
(0.62)

25.4
(1.0)

76.2
(3.0)

31.8
(1.25)

31.8
(1.25)

13.5
(0.53)

13.5
(0.53)

M12

53.7
(2.11)

15.8
(0.62)

28
(1.1)

1.5～2

130
(6.75)

15.8
(0.62)

25.4
(1.0)

76.2
(3.0)

31.8
(1.25)

31.8
(1.25)

13.5
(0.53)

13.5
(0.53)

M12

54.2
(2.11)

15.8
(0.62)

/

2.5

171.5
(6.75)

19.1
(0.75)

38.1
(1.5)

95.3
(3.75)

38.1
(1.5)

38.1
(1.5)

19.8
(0.78)

19.8
(0.78)

M18x1.5

76.2
(3.0)

18.8
(0.74)

34
(1.34)

3～5

171.5
(6.75)

19.1
(0.75)

38.1
(1.5)

95.3
(3.75)

50.8
(2.0)

50.8
(2.0)

19.8
(0.78)

19.8
(0.78)

M18x1.5

77.2
(3.04)

18.8
(0.74)

/
