- BM3 load cells are available in the capacities 0.5t to 7.5t.
- They offer total stainless steel construction, complete hermetic sealing, oil proof, water proof and anti-corrosion making them suitable for use in all kinds of
environments.
- S beam design, bear two sides weight of tension and compression, easy installation and flexible application. It is suitable for hanging scales, mechanical scales, hopper scales and other electronic weighing devices.
- It is safety and anti-explosion product that can be used in atrocious weather and hazardous areas.
Important Features
- Capacities:0.5t to 7.5t.
- High accuracy.
- Strainless steel construction.
- Low profile and nice exterior.
Accessories
- HL-3-001
- HL-3-002
- HL-3-003
- HL-3-004
- HL-3-005
SPECIFICATIONS:
Capacity |
t |
0.5/1/2/3/4/5/6/7.5 |
|||||
Accuracy class |
C2 |
C3 |
A5S |
A5M |
B10S |
B10M |
|
Maximum number |
n max |
2000 |
3000 |
5000 |
5000 |
10000 |
10000 |
Minimum load cell |
v min |
Emax/5000 |
Emax/10000 |
Emax/15000 |
Emax/15000 |
Emax/10000 |
Emax/10000 |
Combined error |
(%FS) |
≤±0.030 |
≤±0.020 |
≤±0.018 |
≤±0.026 |
≤±0.035 |
≤±0.050 |
Creep |
(%FS/30min) |
≤±0.024 |
≤±0.016 |
≤±0.012 |
≤±0.017 |
≤±0.030 |
≤±0.040 |
Temperature |
(%FS/10℃) |
≤±0.017 |
≤±0.011 |
≤±0.009 |
≤±0.013 |
≤±0.030 |
≤±0.040 |
Temperature effect |
(%FS/10℃) |
≤±0.023 |
≤±0.015 |
≤±0.010 |
≤±0.014 |
≤±0.030 |
≤±0.020 |
Output sensitivity |
(mv/v) |
2.0±0.004 |
|||||
Input resistance |
(Ω) |
350±3.5 |
|||||
Output resistance |
(Ω) |
351±2 |
|||||
Insulation resistance |
(MΩ) |
≥ 5000(50VDC) |
|||||
Zero balance |
(%FS) |
1.0 |
|||||
Temperature, |
(℃) |
-10～+40 |
|||||
Temperature, |
(℃) |
-35～+65 |
|||||
Excitation, |
(V) |
5～12(DC) |
|||||
Excitation,Max |
(V) |
18(DC) |
|||||
Safe overload |
(%FS) |
120 |
|||||
Ultimate overload |
(%FS) |
150 |
|||||

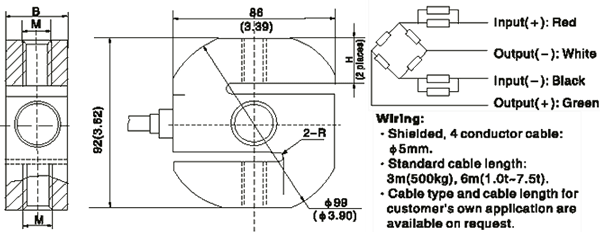

Outline Dimension mm(inch)
Capacity |
0.5 |
1.0 |
2.0 |
3.0 |
4.0 |
5.0 |
6.0 |
7.5 |
B |
32(1.26) |
32(1.26) |
32(1.26) |
32(1.26) |
36(1.42) |
50(1.97) |
50(1.97) |
