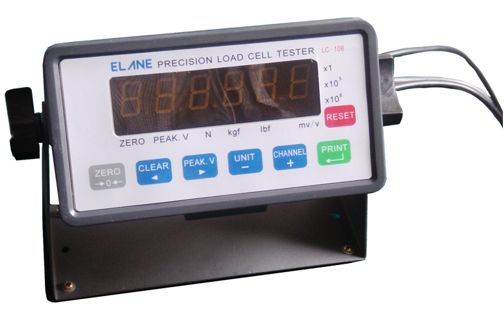

Load Cell Tester




DOWNLOAD DATA SHEET



FEATURES AND SPECIFICATIONS:

     < Large six-digit LED display
     < Easy to use and small in size
     < Accuracy of 0.005%FS/10ppm
     < 2 channels

CH0 :  -12mV/V~+12mV/V, with resolution 0.1uV/V
                  CH1 :  -1.6mV/V~+4.8mV/V, with resolution 0.01uV/V

     < Four user selectable output units (N, kgf, lbf and mv/V)
     < Peak Hold function to capture and holding the peak value for the immediate or later reference
     < Clear key to clear the peak value
     < Presence of tare key and foot switch to zero the display (tare function)
     < Great for monitoring and testing load cell characteristics (repeatability, linearity, creeping, temperature drift, etc)
