-BM14G load cells are available in the capacities 10t to 50t .
-They offer 17-4PH strainless steel construction,electronic hermetic sealing,oil-proof,waterproof and anti-corrosive
gas and medium making them lightening protected in all kinds of environment.
-Single column design,automatically recovery and they are suitable for platform scale,automobile
testing facilities,hopper scale and other electronic weighing devices.
Important Features
-Capacities: 10t to 50t .
-High accuracy.
-Strainless steel construction.
-Easy installation and reliable performance.
-With OIML approval:(PTB:D09-05.21)
Accessories
-BY-14-105
SPECIFICATIONS:
Capacity |
t |
10/20/30/40/50 |
||||
| Accuracy class | C2 |
C3 |
C4 |
A5M |
B 0M |
|
Approval |
OIML R60 C3 |
|||||
Maximum number of |
n max |
2000 |
3000 |
4000 |
5000 |
10000 |
Minimum load cell |
v min |
Emax/5000 |
Emax/12000 |
Emax/14000 |
Emax/15000 |
Emax/10000 |
Combined error |
(%FS) |
≤±0.030 |
≤±0.020 |
≤±0.018 |
≤±0.026 |
≤±0.050 |
Creep |
(%FS/30min) |
≤±0.023 |
≤±0.016 |
≤±0.012 |
≤±0.017 |
≤±0.040 |
Temperature effect |
(%FS/10℃) |
≤±0.017 |
≤±0.011 |
≤±0.009 |
≤±0.013 |
≤±0.040 |
Temperature effect |
(%FS/10℃) |
≤±0.029 |
≤±0.012 |
≤±0.010 |
≤±0.014 |
≤±0.020 |
Output sensitivity |
(mv/v) |
2.0 ± 0.002 |
||||
Input resistance |
( Ω ) |
700 ± 7 |
||||
Output resistance |
( Ω ) |
703 ± 4 |
||||
Insulation resistance |
(M Ω ) |
≥ 5000(50VDC) |
||||
Zero balance |
(%FS) |
1.5 |
||||
Temperature, |
( ℃ ) |
-10～+40 |
||||
Temperature,allowed |
( ℃ ) |
-40～+80 |
||||
Excitation, |
(V) |
5～12(DC) |
||||
Excitation,Max |
(V) |
18(DC) |
||||
Safe overload |
(%FS) |
150 |
||||
Ultimate overload |
(%FS) |
300 |
||||

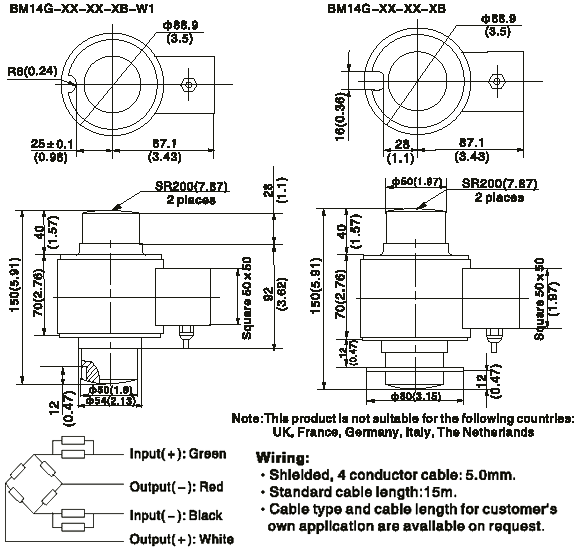

Outline Dimension mm(inch)
