-BM14A load cells are available in the capacities 10t to 100t and 10Klb to 500Klb.
-They offer 17-4PH strainless steel construction,electronic hermetic sealing,oil-proof,waterproof and anti-corrosive
gas and medium making them lightening protected in all kinds of environment.
-Multiform column design, automatically recovery and they are suitable for platform scale,automobile
testing facilities,hopper scale and other electronic weighing devices.
Important Features
-Capacities: 10t to 100t and 10Klb to 500Klb.
-High accuracy.
-Total strainless steel construction.
-Four columns construction.
-Easy installation and reliable performance.
-With OIML approval:(PTB:D09-07.11)
Accessories
-BY-14-101
SPECIFICATIONS:
Capacity |
t |
10/25/40/60/100 |
|||
Klb |
10/25/50/100/200/300/500 |
||||
Accuracy class |
C2 |
C3 |
A5M |
B10M |
|
Approval |
OIML R60 C3 |
||||
Maximum number of |
n max |
2000 |
3000 |
5000 |
10000 |
Minimum load cell |
v min |
E max/ 5000 |
E max /7500 |
E max /15000 |
E max/ 10000 |
Combined error |
(%FS) |
≤± 0.030 |
≤± 0.020 |
≤± 0.026 |
≤± 0.050 |
Creep |
(%FS/30min) |
≤± 0.023 |
≤± 0.016 |
≤± 0.017 |
≤± 0.040 |
Temperature effect |
(%FS/10℃) |
≤± 0.017 |
≤± 0.011 |
≤± 0.013 |
≤± 0.040 |
Temperature effect |
(%FS/10℃) |
≤± 0.029 |
≤± 0.019 |
≤± 0.014 |
≤± 0.020 |
Output sensitivity |
(mv/v) |
2.0 ± 0.002 |
|||
Input resistance |
(Ω) |
450 ± 4.5 |
|||
Output resistance |
(Ω) |
480 ± 4.8 |
|||
Insulation resistance |
(MΩ) |
≥ 5000(50VDC) |
|||
Zero balance |
(%FS) |
1.5 |
|||
Temperature, |
(℃) |
-10～+40 |
|||
Temperature,allowed |
(℃) |
-40～+80 |
|||
Excitation, Recommended |
(V) |
5～12(DC) |
|||
Excitation,Max |
(V) |
18(DC) |
|||
Safe overload |
(%FS) |
150 |
|||
Ultimate overload |
(%FS) |
300 |
|||

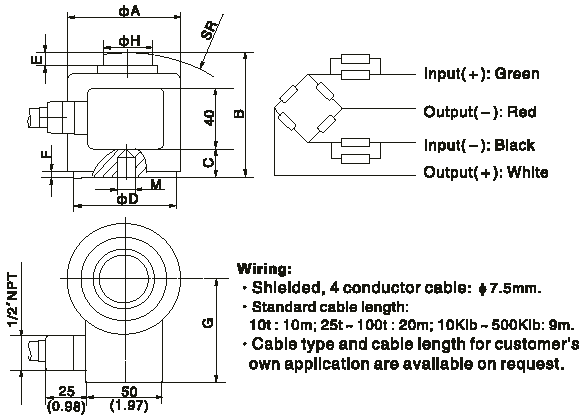

Outline Dimension mm(inch)
Capacity |
A |
B |
C |
D |
E |
F |
G |
H |
M |
SR |
10,25t 10,25,50K |
73 (2.85) |
82.5 (3.25) |
38.23 (1.5) |
58 (2.28) |
7.75 (0.31) |
2.6 (0.10) |
64 (2.25) |
31.8 (1.25) |
M12X1.75 1/2-20UNF |
152 (5.98) |
40,60t 100K |
105 (4.13) |
127 (5.0) |
65.07 (2.56) |
82.5 (3.25) |
9.4 (0.37) |
4 (0.16) |
87 (3.43) |
58.7 (2.31) |
M20X2.5 3/4-16UNF |
152 (5.98) |
100t 200K |
151.4 (5.96) |
184.2 (7.25) |
87.35 (3.44) |
123.8 (4.87) |
23.15 (0.91) |
3.7 (0.15) |
108 (4.26) |
79.4 (3.13) |
432 (17.01) |
|
300K |
151.4 (5.96) |
184.2 (7.25) |
87.35 (3.44) |
123.8 (4.87) |
23.15 (0.91) |
3.7 (0.15) |
108 (4.26) |
79.4 (3.13) |
3/4-20UNF-2B |
432 (17.01) |
500K |
162.6 (6.40) |
228.6 (9.0) |
101.5 (4.0) |
136.3 (5.37) |
10.85 (0.43) |
3.7 (0.15) |
123 (4.84) |
93.7 (3.69) |
432 (17.01) |
