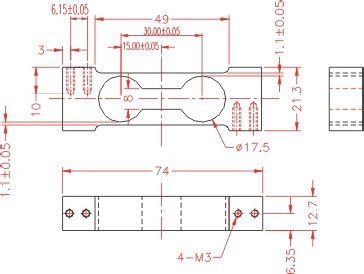

| LOAD CELL 1.1kg | ||
|
||
|
|
||
|
Great as spare part
for scales or for commercial, industrial and experimental
purpose. It's economical and highly accurate.
|
| Type | Bending |
| Model | GFI |
| RATED OUTPUT | 1.0 �0.1mv/v |
| ZERO BALANCE | <� 1 % F.S. |
| OUTPUT EFFECT ON ZERO | 0.05~0.1 %F.S. ( within 5 minutes) |
| NONLINEARITY ,HYSTERESIS AND REPEATABILITY | <� 0.05 % F.S |
| INPUT IMPEDANCE | 350�5 Ohm |
| OUTPUT IMPEDANCE | 350�5 Ohm |
| TEMPERATURE EFFECT ON OUTPUT %OF APPLIED LOAD | ≤ � 0.2, %F.S./10c� |
| TEMPERATURE EFFECT ON ZERO %OF RATED OUTPUT | ≤ � 0.1,%F.S./10c� |
| EXCITATION VOLTAGE | ≤ 5 Volt |
| MATERIAL | Aluminum Alloy 2024-T351 |
| CAPACITY | 1.1kg |
| SAVE OVERLOAD | 150%F.S |
